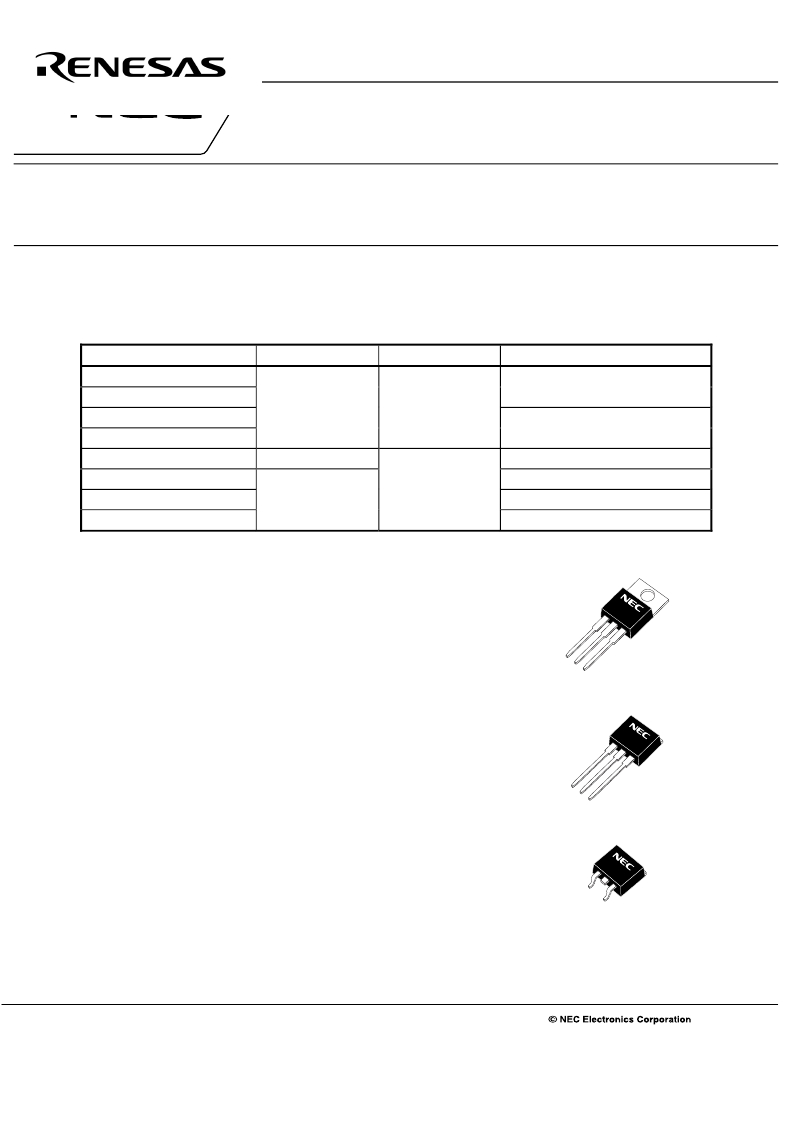

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
NP84N075EUE, NP84N075KUE
NP84N075CUE, NP84N075DUE, NP84N075MUE, NP84N075NUE
SWITCHING
N-CHANNEL POWER MOS FET
DESCRIPTION
These products are N-channel MOS Field Effect Transistors designed for high current switching applications.
<R>
ORDERING INFORMATION
PART NUMBER
LEAD PLATING
PACKING
PACKAGE
NP84N075EUE-E1-AY
NP84N075EUE-E2-AY
NP84N075KUE-E1-AY
NP84N075KUE-E2-AY
Note1, 2
Note1, 2
Note1
Note1
Pure Sn (Tin)
Tape 800 p/reel
TO-263 (MP-25ZJ) typ. 1.4 g
TO-263 (MP-25ZK) typ. 1.5 g
NP84N075CUE-S12-AZ
Note1, 2
Sn-Ag-Cu
TO-220 (MP-25) typ. 1.9 g
NP84N075DUE-S12-AY
NP84N075MUE-S18-AY
NP84N075NUE-S18-AY
Note1, 2
Note1
Note1
Pure Sn (Tin)
Tube 50 p/tube
TO-262 (MP-25 Fin Cut) typ. 1.8 g
TO-220 (MP-25K) typ. 1.9 g
TO-262 (MP-25SK) typ. 1.8 g
Notes 1. Pb-free (This product does not contain Pb in the external electrode.)
2. Not for new design
FEATURES
? Channel temperature 175 degree rated
? Super low on-state resistance
R DS(on) = 12.5 m Ω MAX. (V GS = 10 V, I D = 42 A)
? Low input capacitance
(TO-220)
(TO-262)
C iss = 5600 pF TYP.
(TO-263)
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D14675EJ4V0DS00 (4th edition)
Date Published October 2007 NS
Printed in Japan
The mark <R> shows major revised points.
2002, 2007
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
